Hunza Step Light Square

Original price was: $239.99.Current price is: $159.72.

Sale!

91 in stock

SKU: SLSQ/L-D3-SS-15-2 Category:
Share

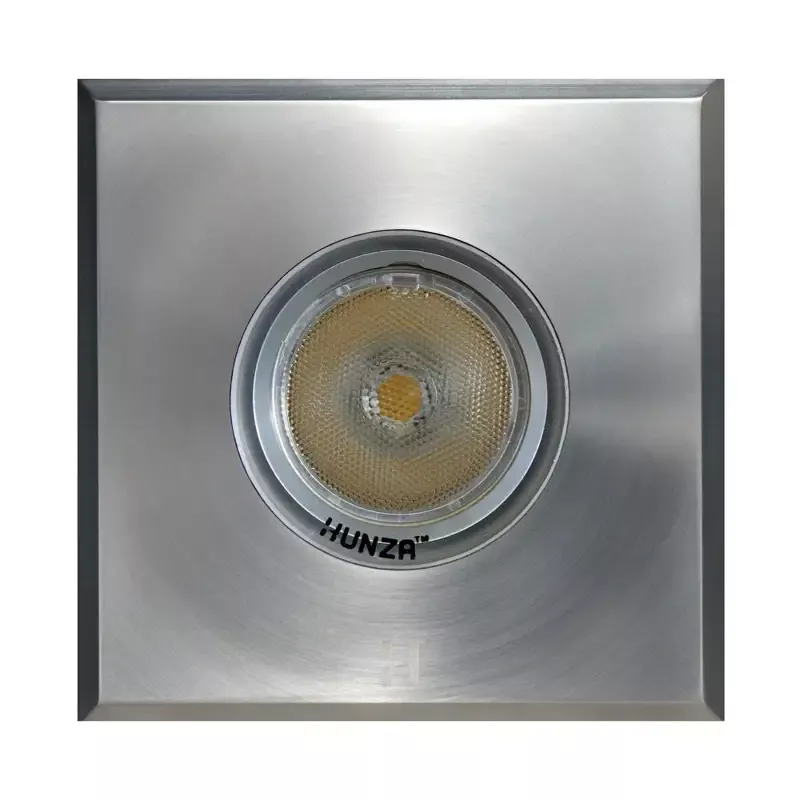

Hunza Step Light Square

The Step Light Square is designed with a 88mm square flange for flush mounting into masonry, stone or wood. This luminaire is ideal for illumination of steps and ground level horizontal lighting, for example, across driveways or exterior paved areas. When a canister is used there are no mounting holes in the flange.

Product Specifications

Lumen Output*
  • 600 lumens @ 1050mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)**Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Clear Lens and Hex Cell Louvre
Mounting Options
  • Deck Mount Canister – Aluminium
  • Stainless Steel Canister
  • Step Light Canister
LED
  • Cree™ XHP-50-2 Plug and Play field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP67
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
  • Solid Powder Coated Aluminium
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components – 10 years
  • Aluminium Components – 5 years
  • Electronics – 5 Years
  • Solid Copper Components – 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Product Files

Click for Step Light Square – SLSQ-L – Specification Sheet

Click for Step Light Square – SLSQ-L – Product Diagram

Click for Path Light – Step Light – Floor Light – Installation Instructions USA

Click for Path Light – Step Light – Floor Light – Installation Instructions International

Diagram Image
Select Power Options // Select Material // Select Beam Angle // Select Colour Temperature

12V 2.1W // 316 Marine Grade Stainless Steel // 15 Degree // 2700K, 12V 2.1W // 316 Marine Grade Stainless Steel // 15 Degree // 3000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 15 Degree // 4000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 25 Degree // 2700K, 12V 2.1W // 316 Marine Grade Stainless Steel // 25 Degree // 3000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 25 Degree // 4000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 38 Degree // 2700K, 12V 2.1W // 316 Marine Grade Stainless Steel // 38 Degree // 3000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 38 Degree // 4000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 60 Degree // 2700K, 12V 2.1W // 316 Marine Grade Stainless Steel // 60 Degree // 3000K, 12V 2.1W // 316 Marine Grade Stainless Steel // 60 Degree // 4000K, 12V 2.1W // Solid Copper // 15 Degree // 2700K, 12V 2.1W // Solid Copper // 15 Degree // 3000K, 12V 2.1W // Solid Copper // 15 Degree // 4000K, 12V 2.1W // Solid Copper // 25 Degree // 2700K, 12V 2.1W // Solid Copper // 25 Degree // 3000K, 12V 2.1W // Solid Copper // 25 Degree // 4000K, 12V 2.1W // Solid Copper // 38 Degree // 2700K, 12V 2.1W // Solid Copper // 38 Degree // 3000K, 12V 2.1W // Solid Copper // 38 Degree // 4000K, 12V 2.1W // Solid Copper // 60 Degree // 2700K, 12V 2.1W // Solid Copper // 60 Degree // 3000K, 12V 2.1W // Solid Copper // 60 Degree // 4000K, 12V 2.1W // Black // 15 Degree // 2700K, 12V 2.1W // Black // 15 Degree // 3000K, 12V 2.1W // Black // 15 Degree // 4000K, 12V 2.1W // Black // 25 Degree // 2700K, 12V 2.1W // Black // 25 Degree // 3000K, 12V 2.1W // Black // 25 Degree // 4000K, 12V 2.1W // Black // 38 Degree // 2700K, 12V 2.1W // Black // 38 Degree // 3000K, 12V 2.1W // Black // 38 Degree // 4000K, 12V 2.1W // Black // 60 Degree // 2700K, 12V 2.1W // Black // 60 Degree // 3000K, 12V 2.1W // Black // 60 Degree // 4000K, 12V 2.1W // Bronze // 15 Degree // 2700K, 12V 2.1W // Bronze // 15 Degree // 3000K, 12V 2.1W // Bronze // 15 Degree // 4000K, 12V 2.1W // Bronze // 25 Degree // 2700K, 12V 2.1W // Bronze // 25 Degree // 3000K, 12V 2.1W // Bronze // 25 Degree // 4000K, 12V 2.1W // Bronze // 38 Degree // 2700K, 12V 2.1W // Bronze // 38 Degree // 3000K, 12V 2.1W // Bronze // 38 Degree // 4000K, 12V 2.1W // Bronze // 60 Degree // 2700K, 12V 2.1W // Bronze // 60 Degree // 3000K, 12V 2.1W // Bronze // 60 Degree // 4000K, 12V 2.1W // Dark Grey // 15 Degree // 2700K, 12V 2.1W // Dark Grey // 15 Degree // 3000K, 12V 2.1W // Dark Grey // 15 Degree // 4000K, 12V 2.1W // Dark Grey // 25 Degree // 2700K, 12V 2.1W // Dark Grey // 25 Degree // 3000K, 12V 2.1W // Dark Grey // 25 Degree // 4000K, 12V 2.1W // Dark Grey // 38 Degree // 2700K, 12V 2.1W // Dark Grey // 38 Degree // 3000K, 12V 2.1W // Dark Grey // 38 Degree // 4000K, 12V 2.1W // Dark Grey // 60 Degree // 2700K, 12V 2.1W // Dark Grey // 60 Degree // 3000K, 12V 2.1W // Dark Grey // 60 Degree // 4000K, 12V 2.1W // Corten // 15 Degree // 2700K, 12V 2.1W // Corten // 15 Degree // 3000K, 12V 2.1W // Corten // 15 Degree // 4000K, 12V 2.1W // Corten // 25 Degree // 2700K, 12V 2.1W // Corten // 25 Degree // 3000K, 12V 2.1W // Corten // 25 Degree // 4000K, 12V 2.1W // Corten // 38 Degree // 2700K, 12V 2.1W // Corten // 38 Degree // 3000K, 12V 2.1W // Corten // 38 Degree // 4000K, 12V 2.1W // Corten // 60 Degree // 2700K, 12V 2.1W // Corten // 60 Degree // 3000K, 12V 2.1W // Corten // 60 Degree // 4000K, 12V 2.1W // Olive Green // 15 Degree // 2700K, 12V 2.1W // Olive Green // 15 Degree // 3000K, 12V 2.1W // Olive Green // 15 Degree // 4000K, 12V 2.1W // Olive Green // 25 Degree // 2700K, 12V 2.1W // Olive Green // 25 Degree // 3000K, 12V 2.1W // Olive Green // 25 Degree // 4000K, 12V 2.1W // Olive Green // 38 Degree // 2700K, 12V 2.1W // Olive Green // 38 Degree // 3000K, 12V 2.1W // Olive Green // 38 Degree // 4000K, 12V 2.1W // Olive Green // 60 Degree // 2700K, 12V 2.1W // Olive Green // 60 Degree // 3000K, 12V 2.1W // Olive Green // 60 Degree // 4000K, 12V 2.1W // Silver Star // 15 Degree // 2700K, 12V 2.1W // Silver Star // 15 Degree // 3000K, 12V 2.1W // Silver Star // 15 Degree // 4000K, 12V 2.1W // Silver Star // 25 Degree // 2700K, 12V 2.1W // Silver Star // 25 Degree // 3000K, 12V 2.1W // Silver Star // 25 Degree // 4000K, 12V 2.1W // Silver Star // 38 Degree // 2700K, 12V 2.1W // Silver Star // 38 Degree // 3000K, 12V 2.1W // Silver Star // 38 Degree // 4000K, 12V 2.1W // Silver Star // 60 Degree // 2700K, 12V 2.1W // Silver Star // 60 Degree // 3000K, 12V 2.1W // Silver Star // 60 Degree // 4000K, 12V 2.1W // Arctic White // 15 Degree // 2700K, 12V 2.1W // Arctic White // 15 Degree // 3000K, 12V 2.1W // Arctic White // 15 Degree // 4000K, 12V 2.1W // Arctic White // 25 Degree // 2700K
