Hunza Twin Wall Spot Light

Original price was: $239.99.Current price is: $145.97.

Sale!

56 in stock

SKU: TWS/L-D3-SS-15-2-WBAP Category:
Share

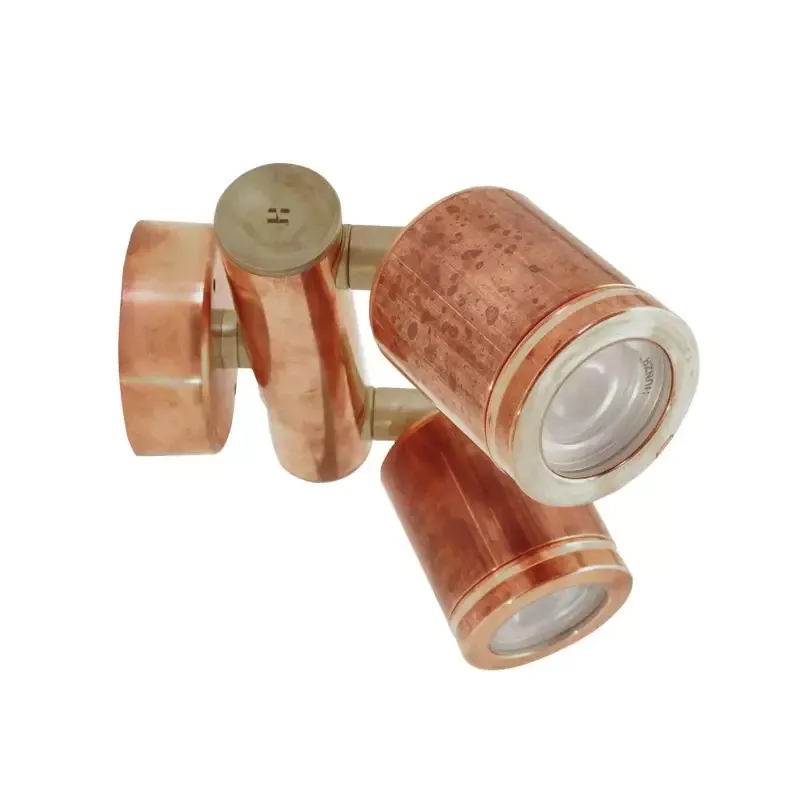

Hunza Twin Wall Spot Light

The Twin Wall Spot has been designed to be mounted on walls and provide directional light for pathways and structural elements of a building.

Product Specifications

Lumen Output Per Head*
  • 600 lumens @ 1050mA (6 Watts)
  • 420 lumens @ 700mA (4 Watts)
  • 240 lumens @ 350mA (2 Watts)
Lumens Per Watt (lm/W)**Delivered from the Luminaire with an unobstructed beam.
  • 100 lm/W
Lens Options
  • with Clear Lens
  • with Frosted Lens
  • with Clear Lens and Hex Cell Louvre
Accessories
  • Glare Guard
  • Snoot
Knuckle Option
  • with Adjustable Knuckle (Standard)
  • with Locking Knuckle
LED
  • 2x Cree™ XHP-50-2 Plug and Play field replaceable LED boards
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP66
Materials
  • 316 Marine Grade Stainless Steel
  • Solid Copper
  • Solid Powder Coated Aluminium
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components – 10 years
  • Aluminium Components – 5 years
  • Electronics – 5 Years
  • Solid Copper Components – 10 Years
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Required for Series Wired (CC format)
  • No Driver Required for Retro™ ‘R’ ( 120/240V Input )
  • Transformer Required for 12VAC Parallel Wired ( CV format )
Dimensions
  • 14.6 x 7.8 x 20.8 cm ( 5.75″ x 3.07″ x 8.19″ )
Weight
  • 2.65 kg ( 5.84 lb )
Product Files

Click for Twin Wall Spot – TWS-L – Specification Sheet

Click for Twin Wall Spot – TWS-L – Product Diagram

Click for Guide: Wall Mount Faceplate – Drilling Template – Classic Range

Click for Wall Mount Classic Range – Installation Instructions USA

Click for Wall Mount Classic Range – Installation Instructions International

Click for Hunza Wall Mount Base Plate (Classic Range) – Cutting Template

Diagram Image
Select Power Options // Select Material // Select Beam Angle // Select Colour Temperature

12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // 316 Marine Grade Stainless Steel // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Solid Copper // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Black // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Black // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Black // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Black // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Black // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Black // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Black // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Black // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Black // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Black // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Black // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Black // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Bronze // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Bronze // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Bronze // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Bronze // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Bronze // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Bronze // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Bronze // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Bronze // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Bronze // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Bronze // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Bronze // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Bronze // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Dark Grey // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Corten // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Corten // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Corten // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Corten // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Corten // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Corten // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Corten // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Corten // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Corten // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Corten // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Corten // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Corten // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Olive Green // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Olive Green // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Olive Green // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Olive Green // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Olive Green // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Silver Star // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 25 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Silver Star // 25 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 25 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 38 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Silver Star // 38 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 38 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 60 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Silver Star // 60 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Silver Star // 60 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Arctic White // 15 Degree // 2700K, 12V 4.2W (2×2.1W – per head) // Arctic White // 15 Degree // 3000K, 12V 4.2W (2×2.1W – per head) // Arctic White // 15 Degree // 4000K, 12V 4.2W (2×2.1W – per head) // Arctic White // 25 Degree // 2700K
